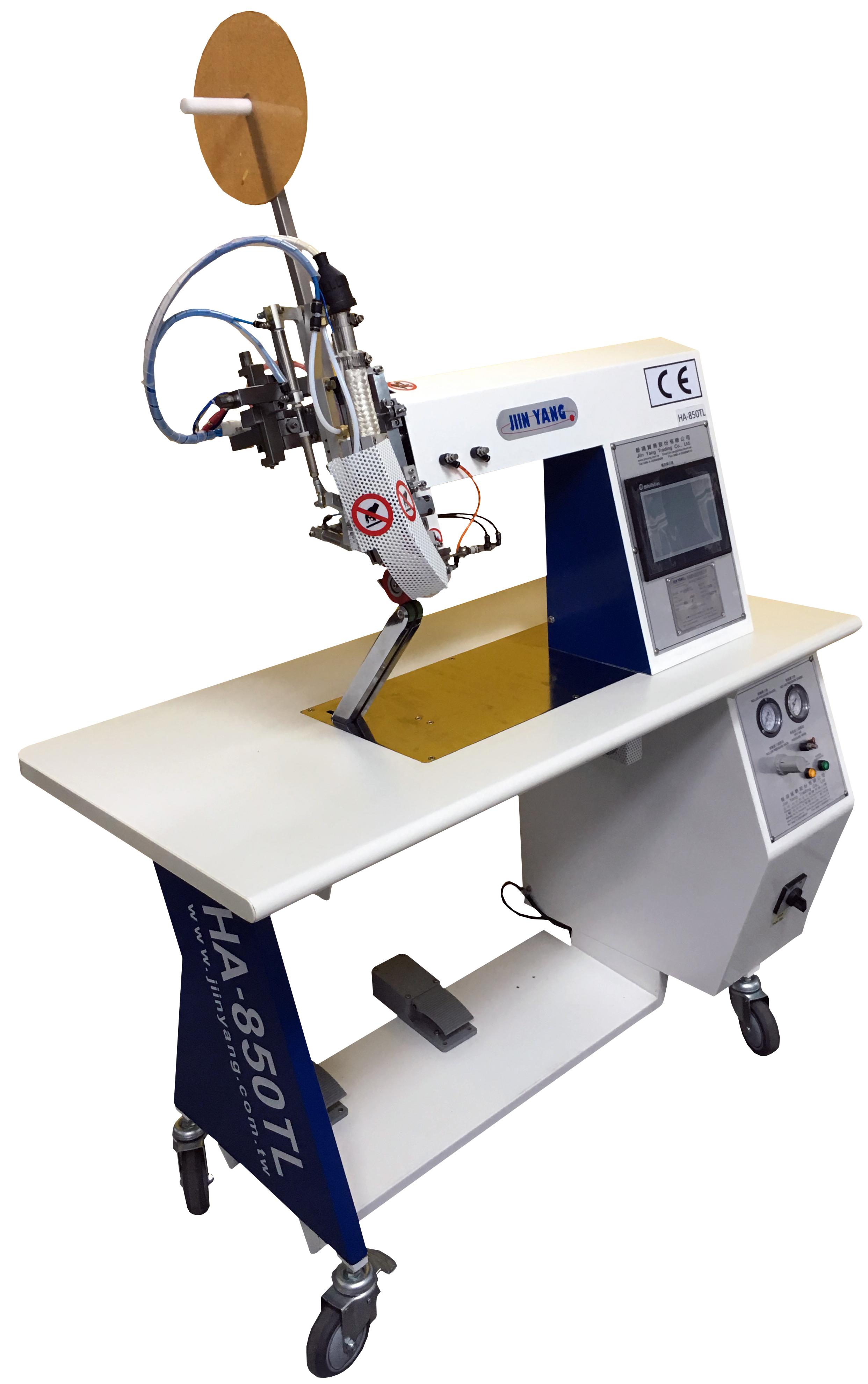

HA-850TR SEAM SEALING M/C- PLC touching & Different speed

Model:

HA-850TR

Name:

HA-850TR SEAM SEALING M/C- PLC touching & Different speed

Introduction:

----Features----
Our machine use the technique of sealing waterproof material by use the hot air nozzle and up/down roller pressing.
The up/down roller can adjust to be different roller speed to meet higher taping performance, especially stretch fabrics, the tape could be more fit the fabric.

----Applications----
Our machine can easy suit in any thick and thin PVC, PU,NYLON,NEOPPENE materials.
Such as waterproof shoes:sport shoes, snow boots, golf shoes, hiking shoes, and casual shoes.

Share:

Spec:

ITEM HA-850TR
Power  AC 220V
Compressed Air 60 PSI (min)
Air Consumption 3 CFM (max)
Sealing speed 2 m/min-7 m/min (Optional)
Maximum temperature 750℃
Heater AC 110V, 1800W
Upper roller lift 25 mm
Method of operation Two stages foot pedal
Pressing roller width 25mm standard(Optional)
Working dimension 1250 mm (L) * 600 mm (W) * 1550 mm (H)
Measurement 1490 mm (L) * 850 mm (W) * 1780 mm (H)
Weight N.W.150 kg G.W.210 kg
